Engineering drilling rig GQ-60This drilling machine is manufactured according to the requirement of foundation engineering, suitable for drilling medium mini-type grouting hole of building, skyscraper, dam and harbor and drilling water well.
- Mast structure, top-drive head can move down or up along with, strength and rigidity
- Large torque, compact structure, easy to move
- Top-drive head is equipped with hydraulic chuck, drilling Efficiently.
- Reasonable arrangement, easy to operate, smooth and quick.
| hole dia (mm) | 600 |
| drilling capacity (m) | 30 |
| topdrive head speeds(r/min) | forward | 40;118;218;300 |
| reverse | 62 |
| max torque (N.m) | 4500 |
| topdrive head max pull force (KN) | 58.86 |
| topdrive head max pulsh force (KN) | 44.15 |
| top-drive head stroke (mm) | 700 |
| hoist lift capacity with singlerope (KN) | 30 |
| retracting stroke (mm) | 580 |
| oil pump | CB32 oil gear pump |
| power unit | electric motor for rotary | Y180L-4 22KW |
| electric motor for hoist | Y160M-4 11KW |
| innerdia if spindle (mm) | 2200×1200×2050 |
| drill body weight(kg) | 2500 |
Package: Plastic Sheeting
Delivery: Container ship, 10 days after receiving deposit
Established in 2009.
Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
|
|

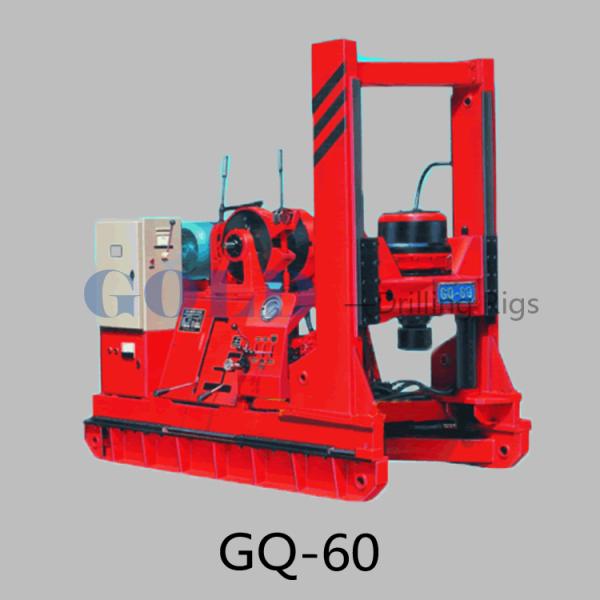

GQ-60 Engineering drilling rig geotechnical investigation drill rig Images
|
